Industrial Embedded SBC-AL35
Premium Industrial-Grade Motherboard
Single Board Computer SBC-AL35

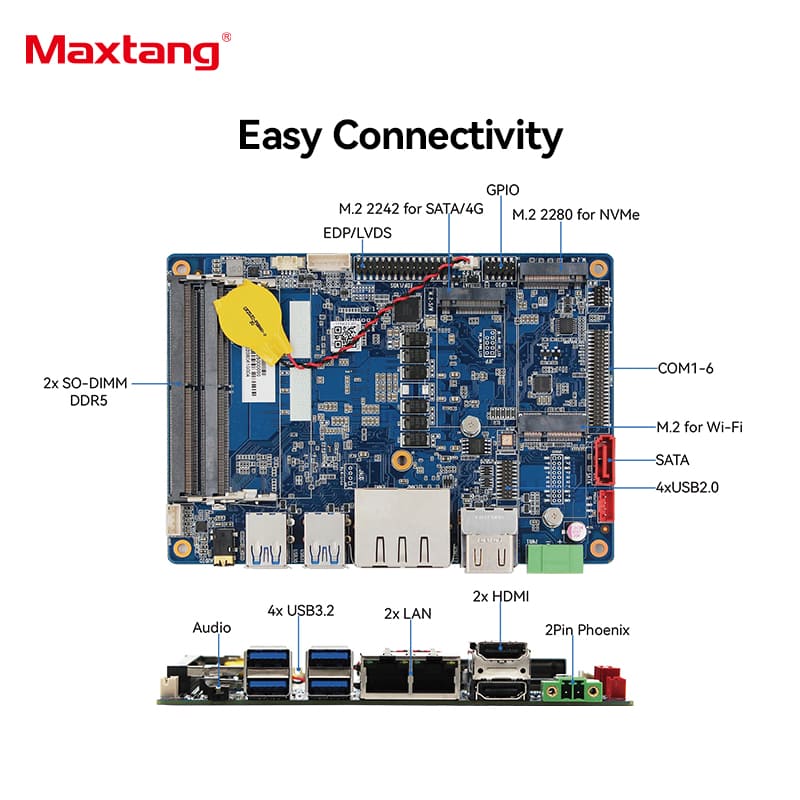

Industrial Embedded SBC Interface
i5 -235u Processor Embedded SBC
Click to enlarge
Industrial Embedded SBC-AL35
Premium Industrial-Grade Motherboard
Single Board Computer SBC-AL35
Industrial Embedded SBC Interface
i5 -235u Processor Embedded SBC
Home Motherboards Intel® Motherboard Industrial Embedded Single Board Computer SBC-AL35

Industrial Embedded Single Board Computer SBC-AL35

1 review

$275.00 – $405.00

Intel® Core™ i5 1235U 10cores,12threads Processor 3.5’’ SBC Form Factor

  • 12th Gen Intel® Core i5-1235U Alder Lake U Processor
  • Dual Channel DDR4 up to 64GB
  • 3-display with 2xHDMI® and eDP/LVDS
  • Intel i219(1.0G) + Intel i226(2.5G)
  • 6xCOM,4xUSB3.2, 4xUSB2.0, GPIO,2xLAN
  • SATA3.0, M.2 2242 for SATA/4G, M.2 2280 for NVMe PCIe4.0

This SBC motherboard requires you to handle its cooling setup on your own. We will provide the motherboard model documentation. It requires certain technical skills. If you do not have the necessary expertise, please do not place an order.

DDR4 16+512GB SSD
DDR4 32+512G SSD
DDR4 8+256G SSD
No RAM No Storage
12th Gen i5-1235U Processor
US
EU
JP
UK
AU
Others
Clear
paymentlogos-MaxtangPCs
Compare
Add to wishlist
Datasheet
  • 🆓 ship free
  • 🫶 3-Year Warranty
  • 🛡️30-Day Refund & Return
*About the Taxs

1.Maxtang does not guarantee whether you will be subject to Value Added Tax (VAT) as it varies on the region. Taxes are not included in the listed price.

2.Choose ‘Duty-Free Shipping’ to have customs fees prepaid by Maxtang for a hassle-free experience.

*About Shipping Days

Your purchase will be shipped directly from our Hong Kong! We aim to process and dispatch your order within 1-2 business days, ensuring you can start enjoying your purchase promptly.

  • Description
Description

The Latest 12th Gen Single Board Computer

The Latest 12th Gen AL-35 single-board computer (SBC) combines high-performance computing and energy efficiency. It supports up to 64GB of DDR4 memory and can connect to 3 displays via two HDMI® and eDP/LVDS.

This Intel embedded board is ideal for multimedia applications such as digital signage and video walls. It features dual Ethernet ports (1Gbps and 2.5Gbps) for networking and edge computing tasks.

Embedded board also offers versatile storage options, including SATA3.0, M.2_SATA/4G, and M.2_NVMe interfaces. It has an expansion slot for adding a Wi-Fi module and a power input range of 12V-35V via Phoenix (2Pin), making it adaptable to various environments.

Intel® Core™ i5 1235U 10-core Processor industrial single board computer

Powerful and Multitasking Motherboard

Wifi6 and BT5.0

Support WiFi6+BT5.2

Dual Channel DDR4

Dual Channel DDR4 up to 64GB

2xRJ45 LAN

2xRJ45 LANs
Intel® i219 (1.0G) +
Intel® i226 (2.5G)

Triple Displays with 4K UHD@60Hz

4K UHD@60Hz
Triple Displays

TDP 15 W

TDP 15 W

2x M.2

2x M.2

2242 for SATA/4G

2280 for NVMe

1x SATA3.0

2.5-inch HDD

various interfaces
12th Generation Intel® i5-1235U processor

3.5" Embedded Motherboard

The Maxtang 3.5-inch disk size motherboard is equipped with the faster 12th Generation Intel® i5-1235U processor, boasting a 4.4GHz P-Core Max Turbo Frequency (10C/12T) and 12MB Intel® Smart Cache. This motherboard supports up to DDR4, providing a seamless experience for various applications such as embedded systems, DIY projects, visual home entertainment, streaming video, web browsing, and work-related tasks.

Furthermore, all of our Single Board Computer (SBC) boards have obtained FCC, CE, and RoHs certifications, ensuring their compliance with international standards. We offer a 1-year warranty with 24/7 customer service and lifetime technical support, alleviating any concerns regarding quality issues. For any inquiries, please do not hesitate to contact our customer service team via email.

Embedded Motherboard with Powerful CPU Mark Performance

Faster Connectivity

Best SBC-AL35 motherboard advanced connectivity features for seamless data transfer. Equipped with high-performance Intel® i219 (1.0G) and Intel® i226 (2.5G) Ethernet ports to provide fast and reliable network connections, enabling efficient data transmission.It also supports Wi-Fi expansion through an M.2 slot, providing additional wireless connectivity options for seamless network connections.

i219 (1.0G) and Intel® i226 (2.5G)

Flexible Storage Solutions

No more waiting

SBC AL-50 industrial single board computer offers flexibility and performance upgrades with storage options that include up to a 2TB M.2 2280 NVMe SSD, along with optional SATA and M.2 for SATA/4G connections.

Flexible Storage Solutions

Phoenix Input Design

The 12V-35V Phoenix input (2Pin) design offers a broad power input range, making it optimal for various environments with efficiency and versatility.

Phoenix Input Design

DDR4 Memory for Faster, More Efficient Computing

Our latest AL-35 SBC motherboard has Dual Channel SO-DIMM DDR4 memory. It is better than previous generations because it can double the bandwidth. This means it can do more things at once and work better. The motherboard can hold up to 64GB of memory, which is a lot.

The DDR4 memory is also good because it uses less power. It only needs 1.0V instead of 1.1V, which saves up to 30% of power. This makes the SBC system cooler and more efficient. It also makes the components last longer and uses less energy.

If you want a better computing experience, you should upgrade your SBC system with our Dual Channel SO-DIMM DDR4 memory. It has more capacity, is faster, and uses less power. It is good for multitasking, content creation, and gaming. It is also good for the environment because it uses less energy. Get ready for the future of memory technology and make your computing better!

Capacity & Transmission

Up to 64GB capacity

Power Saving

1.1 Voltage Only

Two Channel

Bandwidth 2x

DDR5 Memory for Faster, More Efficient Computing

Triple Display SBC Motherboard

Our new SBC motherboard has three display ports, including two HDMI® 2.0 ports and one eDP/LVDS port. You can connect three displays at once for a great visual experience. This is perfect for professionals who need more workspace, people who use many applications at once, or gamers who want better graphics. This motherboard is very flexible and can help you be more productive.

Triple Display industrial single board computers

Cost-Effective Solution

Delivers a cost-performance and high-quality industrial single-board computing solution in a compact form factor, specifically designed for Embedded Systems Developers, DIY Enthusiasts, Industrial Professionals, System Integrator, Multimedia Professionals, Networking and Communication Experts applications requiring efficient processing. Its competitive price point, coupled with its powerful features, establishes it as a compelling choice when compared to larger, more expensive alternatives.

Size and Space Efficiency

Price of the Alder Lake motherboard with a small 3.5-inch disk size form factor and i5-1235u processor enables seamless integration into space-constrained environments. Its compact design makes it ideal for embedded systems, industrial machinery, and robotics applications.

1.0+2.5G

Intel® i219+Intel® i226

HDMI®+eDP/LVDs

4096 x 2304@60Hz 3-displays

M.2 for WiFi

Expansion

Accessibility and Usability of Software

The software is designed to be compatible with both 64-bit operating systems of Windows 10/11 and Linux, thereby offering a high degree of flexibility and adaptability to diverse software environments.

Support Windows 64 bit
Support Linux 64 bit

Functional Block Diagram

The best motherboard with i5 processor presents a diverse array of display alternatives, encompassing HDMI®, eDP, and LVDS, and incorporates two Intel Ethernet controllers, two M.2, and SATA for storage, thereby rendering it a versatile solution for a multitude of applications

Functional Block Diagram

Reducing Downtime and Minimizing Maintenance Costs

Industrial-Grade Motherboard

Maxtang, a leading board-level manufacturer, presents the i5 12th generation SBC-AL35 sbc computer. Engineered to endure harsh environments in a wide temperature range from -20°C to 50°C.(-4°F to 122°F)
With its durability and stability, SBC-AL35 is ideal for deployments in challenging conditions. Its rugged design and stable performance guarantee reliable operation, reducing downtime and minimizing maintenance costs.

168Hrs

Stability Test

48Hrs

Packet Loss Test

4 Hrs Aging Test

X-Ray

X-Ray Inspection

High&Low Temperature Test

High&Low Temperature Test

Humidity Test

95% Humidity Test

Side Fill Technology

Side Fill Technology

hdmi

*Product has High-Definition Multimedia Interface.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.

AL35 Embedded SBC Motherboard Specifications

SBC AL-35 CPU i7-1255U i5-1235U i3-1215U
Total Cores/Threads 10C/12T 10C/12T 6C/8T
P-core Max Turbo Frequency 4.70GHz 4.40GHz 4.40GHz
E-core Max Turbo Frequency 3.50GHz 3.30GHz 3.30GHz
Cache 12MB 12MB Intel® Smart Cache 10MB
BIOS AMI UEFI BIOS
Memory Type Dual Channel SO-DIMM DDR4
Max Capacity 64GB
Display GPU Integrated Graphics based on CPU. Intel® Iris® Xe or UHD Graphics
Display via 2xHDMI®2.0 + 1x eDP/LVDs
Ethernet Controller Intel i219 Data Rate per Port: 1.0G
Intel i210 Data Rate per Port: 1.0G
Interface 2xRJ45
Wake on LAN Yes
Audio Audio codec Realtek HD
Interface 1xCTIA 2-in-1 Audio Jack, supports Line-out + Mic-in and power amplifier
Hardware CPU system temperature, on-board DC-in voltage, watchdog, auto power on
Storage M.2 1x M.2_2242 for SATA SSD/4G
1x M.2_2280 for NVMe SSD
SATA3.0 1x SATA3.0 FPC Interface
Expansion M.2 1x M.2 for Wi-Fi, Supports PCIE& CNVi
I/O Interface LAN 2
COM 6*RS232. The COM1_2 can be set as RS485/RS422 in BIOS.
The COM5,COM6 are 2-wire serial communication
USB3.2 4
USB2.0 4*header
Audio 1 (Line-out+Mic-in)
GPIO 8
SIM Optional
TPM2.0 Onboard, Optional
Dimension Board Type 3.5” Disk Size SBC
Size 146 mm x 102mm
Power Standard Port 12V-35V, 2-Pin DC-IN Phoenix Connector
Peripheral Input For Fan and SATA
LED Indicator Power Indicator
Temperature Operating Temp. -20°C to 60°C
Storage Temp. -40°C to 80°C
Operating System Win10/11 64bit, Linux 64bit
*All specifications and photos are subject to change without notice.
