MTN-FP650
Best Micro PC
Going Bigger and Better Performance
AMD® Ryzen™ 7 5800H
AMD® Ryzen™ 5 5600H
AMD® Ryzen™7 5800H
8 cores,16 Threads
AMD® Ryzen™ 5 5600H
6 cores,12 Threads
AMD® Radeon™Graphics
Max 2000Mhz GPU Frequency
Support up to 64GB RAM
Dual Channel DDR4 Memory
Up to 2TB SSD
M.2 2280 NVMe/SATA
3X4K@60Ghz Displays
Via DP1.4+2xHDMI® 2.0
Supports WiFi6+BT5.2
1.0G LAN
Active Cooling Fan
Powerful AMD® CPU
Maxtang micro PC Windows transforms any ordinary desk into a powerhouse workstation. It takes the concept of a Do-it-all desktop to a whole new dimension. Simply add a keyboard, mouse, and up to two, three, or four displays. Discover the perfect AMD® mini pc that suits your needs.
AMD® Ryzen™ 7 5800H
Zen 3+
Architecture
8
CPU Cores
16
Threads
TSMC 7nm
FinFET
Up to 4.4GHz
Max. Boost Clock
Benchmark
+24%
Performance
Data is derived from simulated tests conducted in Maxtang’s laboratory and is subject to variation based on individual device usage patterns.
AMD® Ryzen™ 5 5600H
Zen 3+
Architecture
6
CPU Cores
12
Threads
TSMC 7nm
FinFET
Up to 4.2GHz
Max. Boost Clock
Popular Comparisons for AMD® Ryzen™5 6600H. Higher results represent better performance
+30%
Performance
Data is derived from simulated tests conducted in Maxtang’s laboratory and is subject to variation based on individual device usage patterns.
3500MB/s: No More Waiting!
Maxtang Mini Computer, driven by the advanced AMD 7nm processor and featuring 8GB/16GB/32GB DDR4 Memory (upgradeable to 64GB), along with optional storage of 128GB/256GB/512GB M.2 2280 NVMe SSD (maximum 2TB), is a Ryzen-based mini PC expertly crafted by our talented USA designers. It offers the perfect solution for your entertainment, creative, and productivity needs, ensuring all-day enjoyment.
Multitasking to the Max!
Immersive visual experience with stunning 4K displays @60Hz. The MTN-FP650 mini PC features AMD® Ryzen™ 7 processor and offers triple displays via 2xHDMI®2.0 plus 1xDP1.4 through USB-C. It combines full capability with compact size. Small yet extraordinary, it broadens horizons for various applications like gaming, work, and investment. Don’t miss out!

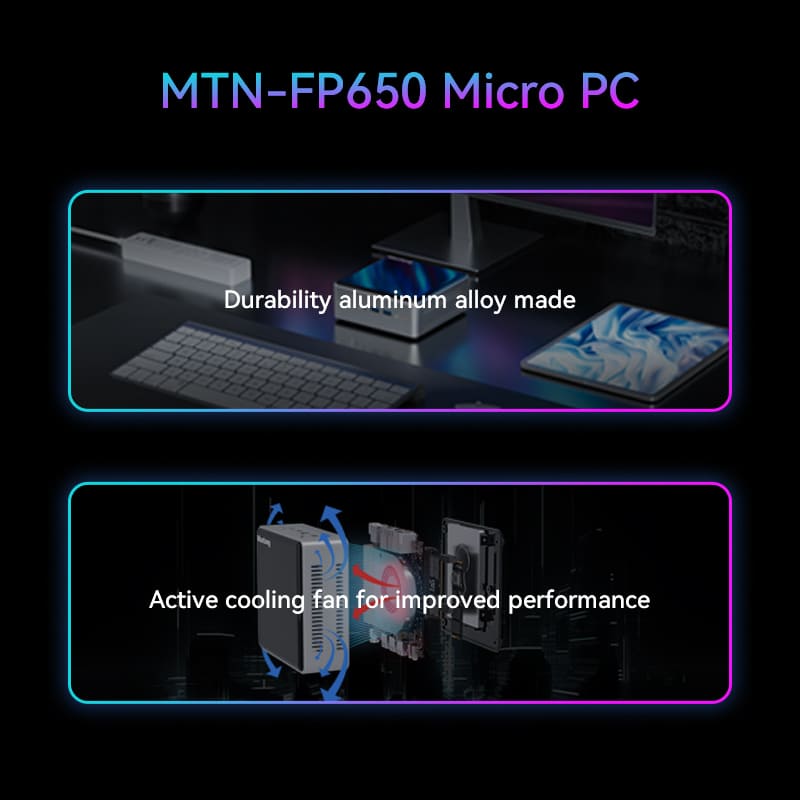

Anti-dust and Cooling, Work Nonstop
Embrace the advantages of intelligent active heat dissipation, delivering a less noise level of 30-32dB for a silently efficient cooling solution. This design ensures the fan is never overworked, guaranteeing a durable, dust-free, and stable performance for continuous output.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Your Reliable and Stable All-Rounder Micro PC
Elevate your multitasking power with the MTN-FP650 Ryzen 5 mini PC: experience unmatched reliability and stability for creating, playing, working, and educating. Boost your daily operations with powerful performance.
Versatile Connectivity at Your Fingertips

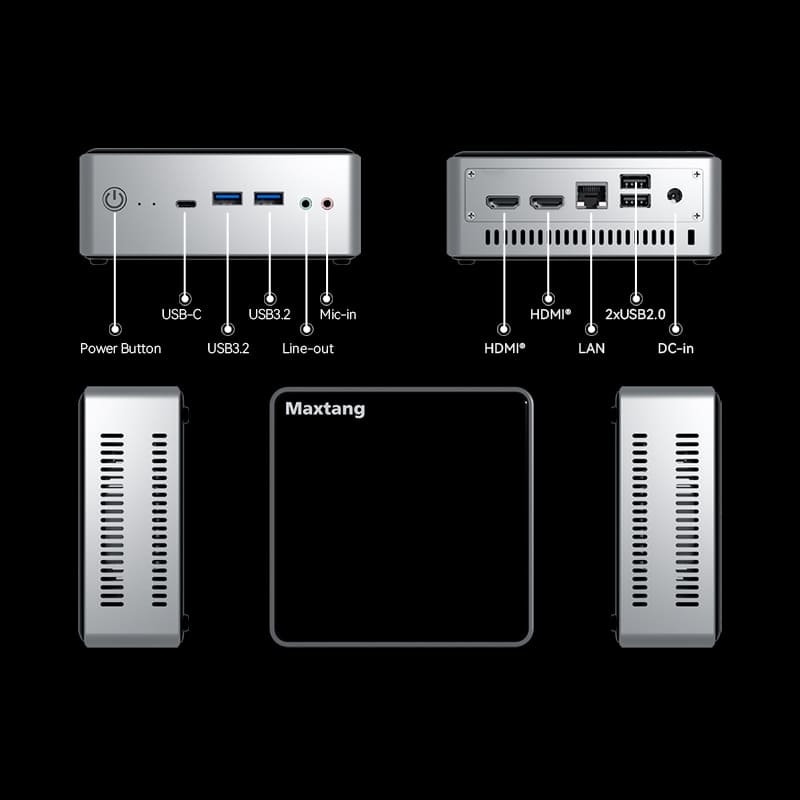

For a playing journey, the Maxtang MTN-FP650’s multi-interface configuration offers a full-featured USB Type-C port, support for 2xUSB3.2, 2xUSB2.0, 1xLAN, 2xHDMI®2.0, Mic-in, Line-out, and a standard 19V DC-in. Enjoy enhanced convenience and widespread compatibility.
Next-Level Gaming Network Performance
Enjoy gaming-grade network transmission with optional WiFi6 and 1000Mbps wired network card. This powerful combination ensures faster, stable data transfer. Additionally, it supports Bluetooth 5.2 technology which allows quick connectivity.
Built to Withstand the Toughest Environments
This Windows 10 micro PC is meticulously designed to thrive in harsh conditions, offering moisture-proof, dust-proof, and corrosion-resistant properties. It undergoes rigorous testing, including aging, high and low temperature, vibration, drop, thermal shock, and network port data packet loss procedures. Engineered to withstand extreme conditions for prolonged periods, it endures frigid temperatures as low as -20℃ (-4℉) and scorching heat up to 60℃ (140℉), maximizing product lifespan and reliability.
168Hrs
Stability Test
48Hrs
Packet Loss Test
Full Function Test
Aging Test(4 Hrs)
Humidity Test
Side Fill Technology

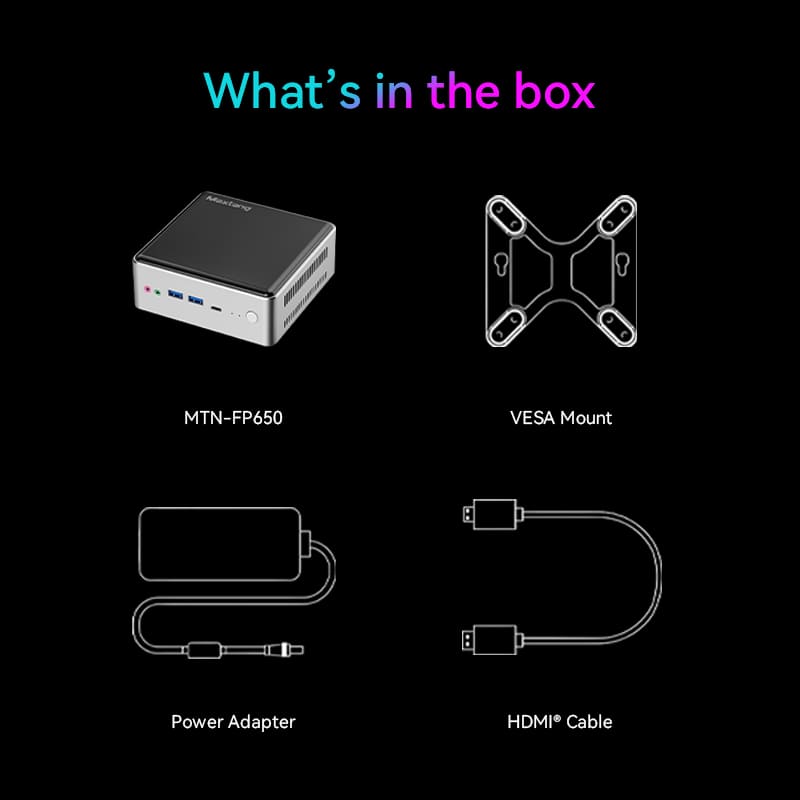

What’s in the box
MTN-FP650 V1.0 Mini PC product link,please click “here“
*Product has High-Definition Multimedia Interface.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
MTN-FP650V2.0 Specifications
| MTN-FP650V2.0 | CPU:AMD “Zen 3” | RyzenTM 7 5800H | RyzenTM 5 5600H | |||
| # of CPU Cores | 8 | 6 | ||||
| # of Threads | 16 | 12 | ||||
| Max. Boost Clock | 4.4GHz | 4.2GHz | ||||
| Base Clock | 3.2GHz | 3.3GHz | ||||
| Total L2 Cache | 4MB | 3MB | ||||
| Total L3 Cache | 16MB | 16MB | ||||
| BIOS | AMI UEFI BIOS | |||||
| Memory | Type | Dual Channel SO-DIMM DDR4 up to 64GB | ||||
| Display | GPU | AMD Radeon™ Graphics | ||||
| Display Interface | 2xHDMI®2.0 plus DisplayPort 1.4 through USB-C | |||||
| Ethernet | Speed | 10/100/1000 Mbps | ||||
| Controller | RTL8111H | |||||
| Interface | 1xRJ-45 | |||||
| Audio | Audio Codec | Realtek HD | ||||
| Interface | 1xLine-out, 1xMic-in | |||||
| Hardware | Hardware | CPU temperature, System temperature, Onboard voltage, Watchdog | ||||
| Storage | M.2 | 1xM.2 for NVMe/SATA SSD | ||||
| SATA | 1XSATA3.0 | |||||
| Expansion | M.2 | 1xM.2 for WiFi and Bluetooth | ||||
| Other I/O | USB2.0 | 2 | ||||
| USB3.2 | 2 | |||||
| USB-C | 1x USB-C: Support USB3.2 Gen 2/Display Port1.4 | |||||
| Power | Standard Port | 12V/19V DC-in | ||||
| Dimension | Size | 128Lx130Wx52Hmm (5x5x2-inch) | ||||
| Temperature | Operating Temp. | 0°C to 50°C | ||||
| Storage Temp. | -20°C to 70°C | |||||
| Cooling | Cooling Method | Active | ||||
| Operating System | OS | Supports Windows 10/11 64bit, Linux 64bit | ||||
| *All specifications and photos are subject to change without notice. | ||||||
| *The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. | ||||||
