Plug-in-Ready

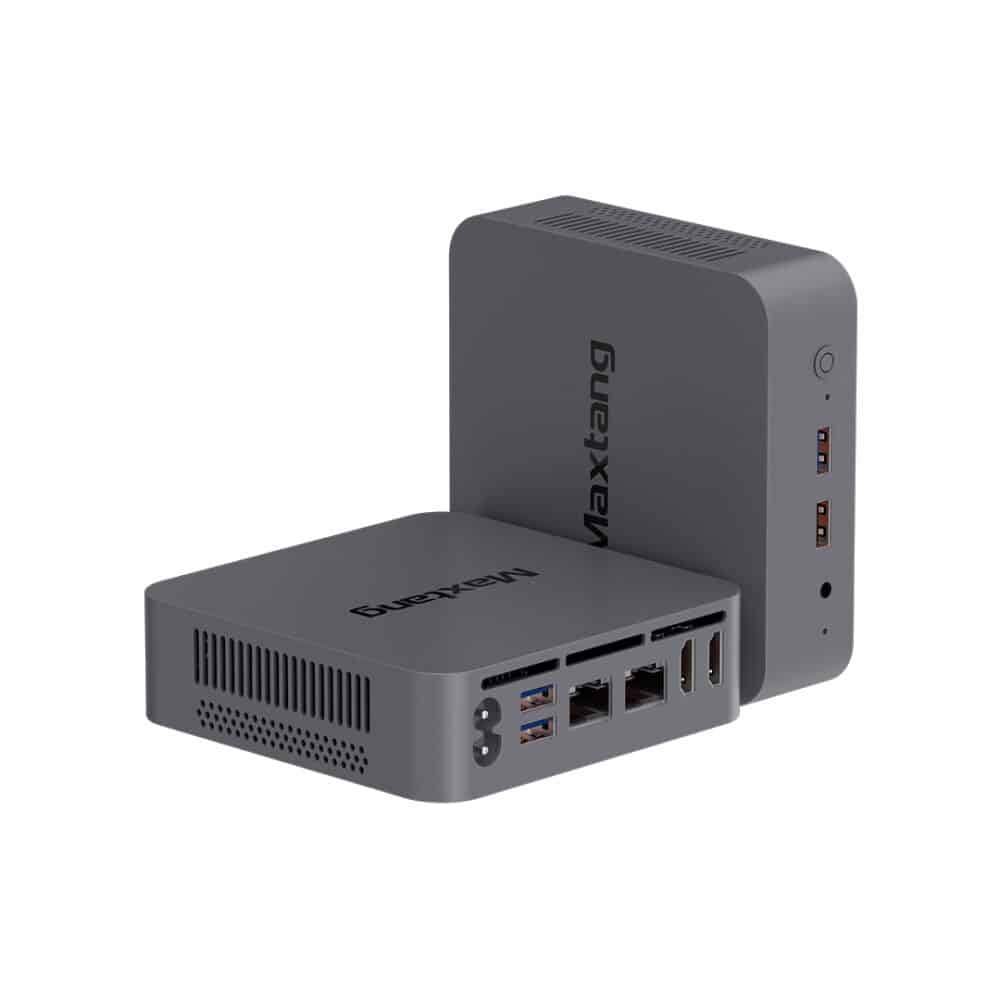

MAX-N100 Mini PC
Intel® 11th Gen N100 Processor
The MAX-N100 is equipped with the latest Intel® Alder Lake N100 processor, delivering a perfect blend of power and efficiency. With its quad-core design and turbo frequency of up to 3.40GHz, this processor ensures lightning-fast performance, allowing you to seamlessly handle complex tasks, from data analysis to multimedia processing.

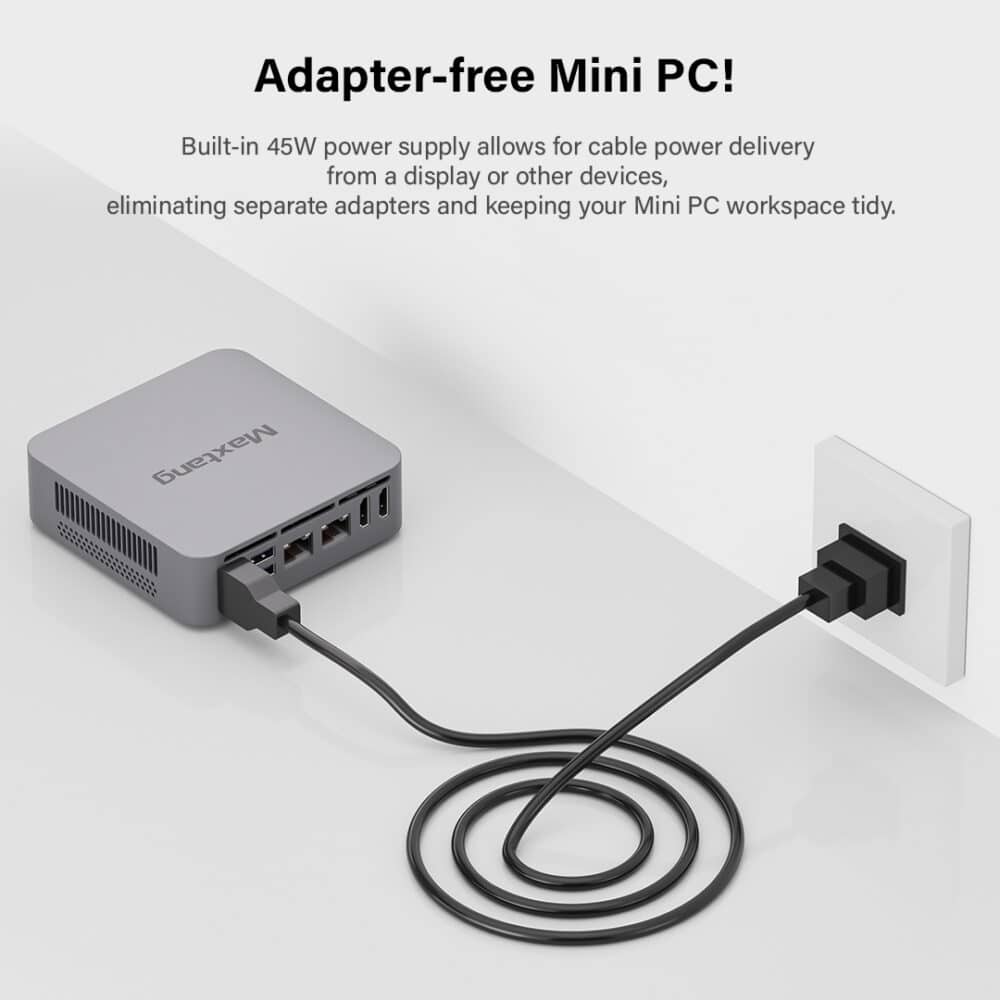

Direct-Power Mini PC
The MAX-N100, driven by the Intel® Alder Lake-N Series Processor, delivers powerful efficiency in an ultra-compact design. This ready-to-use mini-PC connects directly to an AC jack, removing the need for a bulky power adapter and enhancing its convenience. Perfect for applications that demand dependable, space-saving performance.
Dual 4K Display Mini PC
The MAX-N100 supports dual 4K UHD displays via 2xHDMI®2.0, delivering cutting-edge performance and seamless compatibility with both Windows and Linux operating systems.

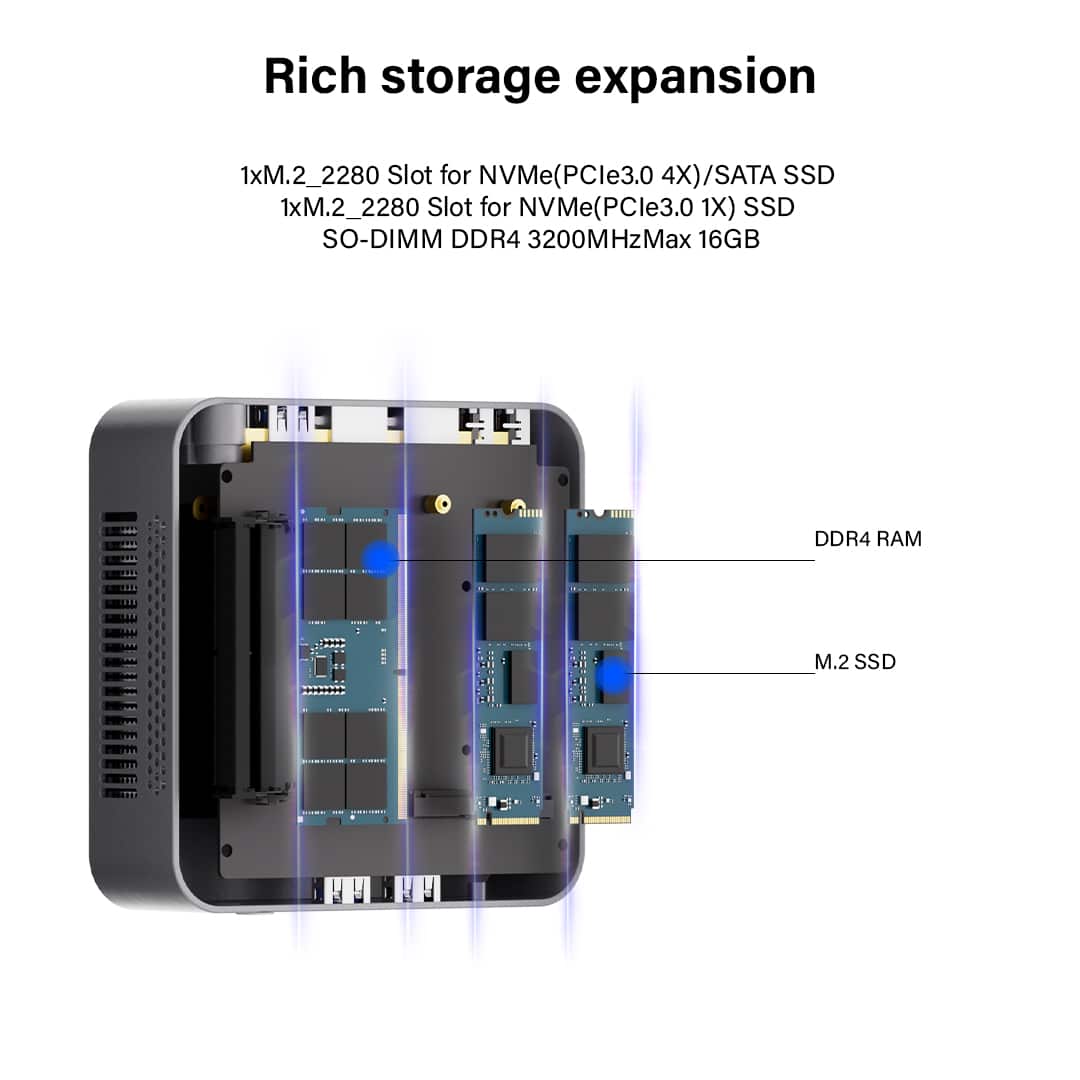

Customizable and Expandable
With M.2 slots for NVMe and SATA SSDs and support for Wi-Fi and Bluetooth expansion, the MAX-N100 allows users to tailor their system to specific requirements, providing flexibility for various applications.
1xM.2_2280 Slot for NVMe(PCIe3.0 4X)/SATA SSD up to 2TB
1xM.2_2280 Slot for NVMe(PCIe3.0 1X) SSD up to 2TB

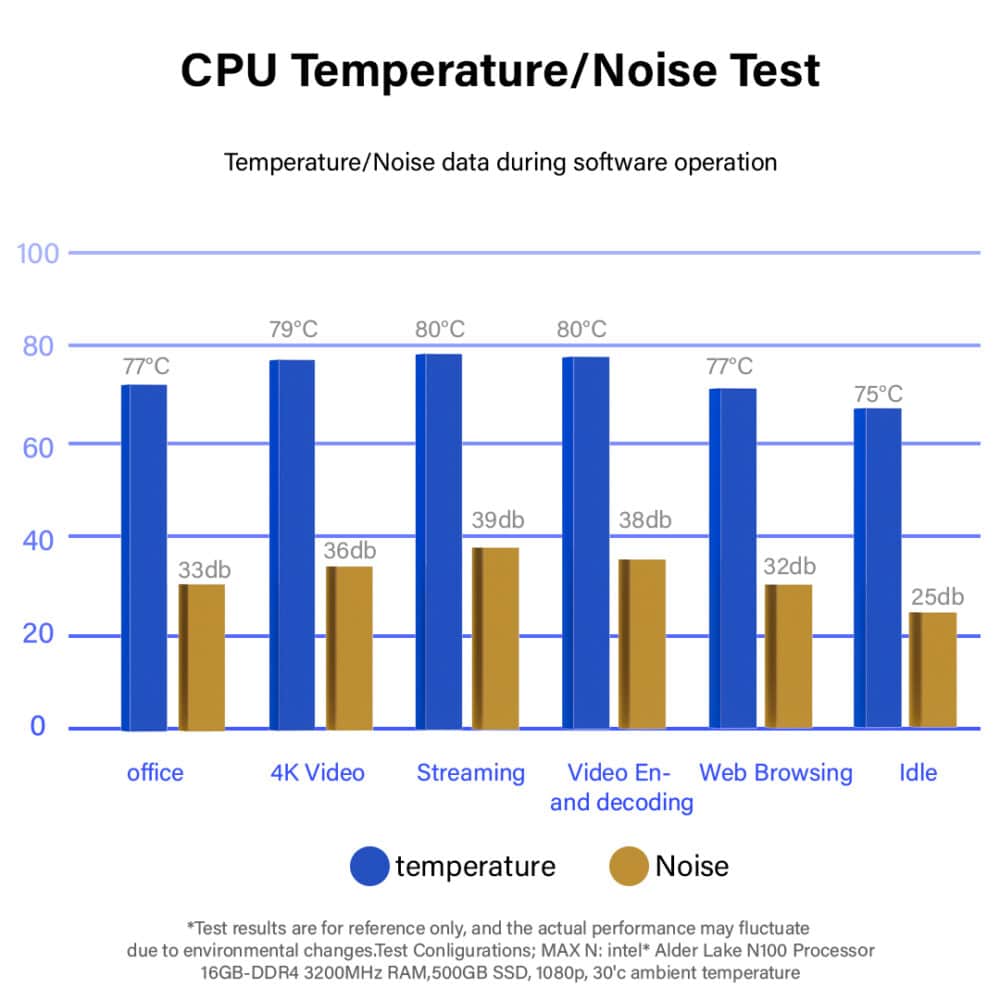

Enhanced 2.0 Thermal Management Design
Boasting a low power consumption of just 6W and active cooling, the MAX-N100 ensures efficient operation while maintaining stability even in challenging environments, making it a reliable choice for long-term use.

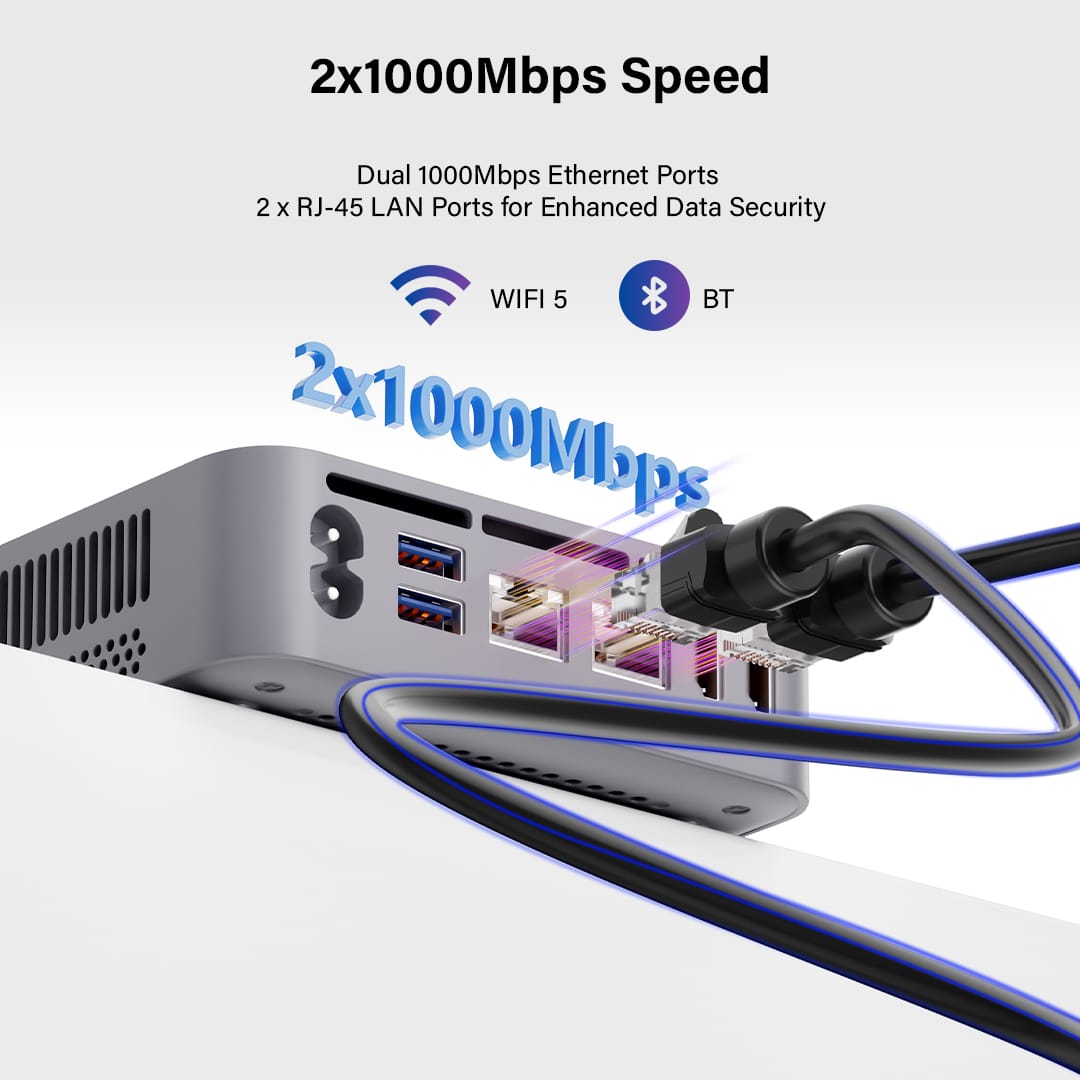

Dual 1000Mbps Ethernet Ports
2 x RJ-45 LAN Ports for Enhanced Data Security
What’s in the box
*Product has High-Definition Multimedia Interface.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
MAX_N100 Specifications
| MTN-BW50 | CPU | N100 | ||
| Total Cores/Threads | 4C/4T | |||
| Max Turbo Frequency | 3.40GHz | |||
| Cache | 6MB | |||
| Processor base Power | 6W | |||

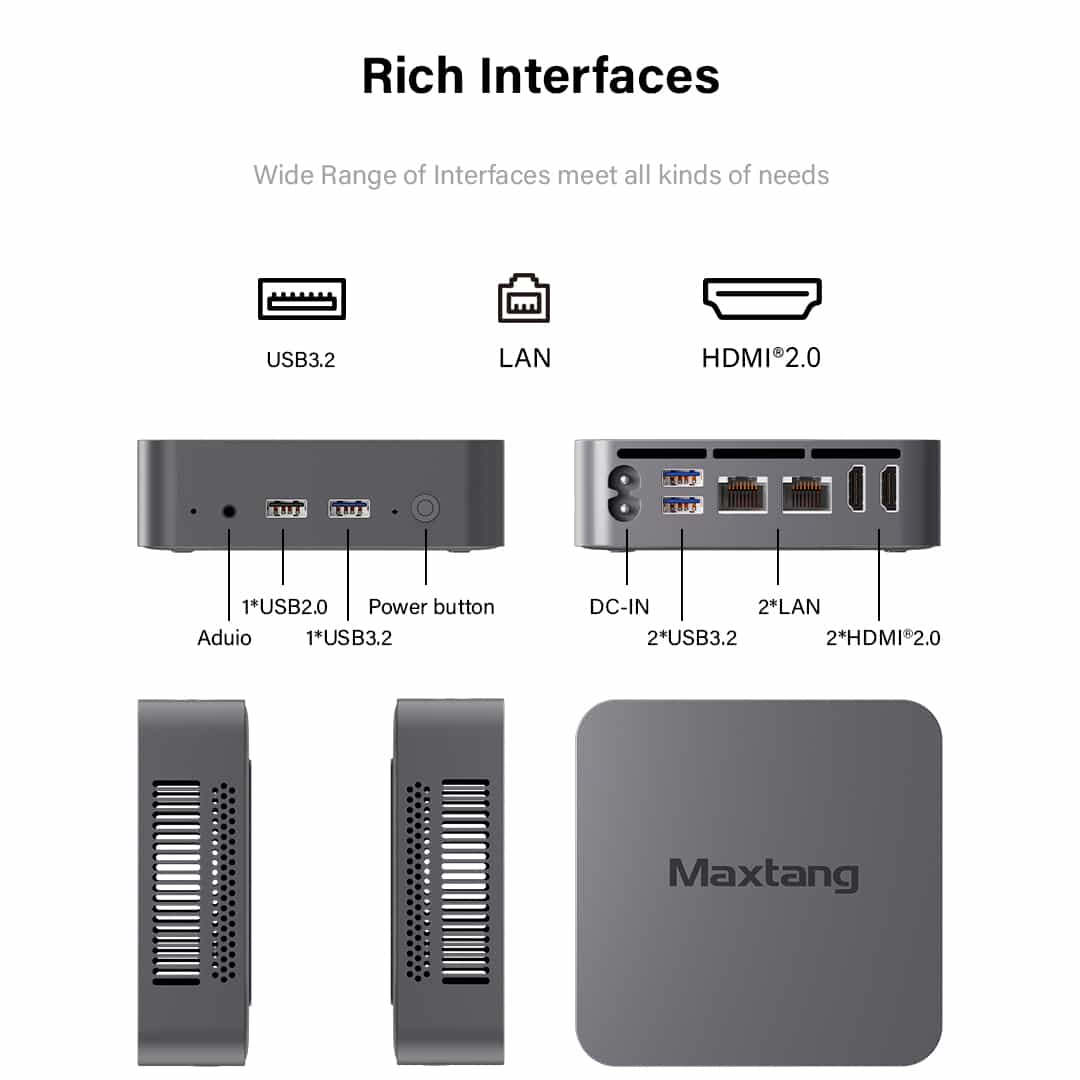

| I/O Interface | HDMI® | 2 | ||
| USB2.0 | 1 | |||
| USB3.2 | 3 | |||
| LAN | 2 | |||
| LED Light Indicatior | 1(Power_on Light Indicator. Status: White Light) | |||
| Memory | Type | Single Channel SO-DIMM DDR4-3200MHz | ||
| Max Capacity | 16GB | |||
| Display | GPU | Integrated Intel® UHD Graphics | ||
| Display Port | 2xHDMI® | |||
| Ethernet | Speed | 10/100/1000 Mbps | ||
| Controller | RTL8111H | |||
| Interface | 2xRJ-45 | |||
| Audio | Audio Codec | Realtek HD | ||
| Interface | 1xCTIA 2-in1 Audio Jack, Supports Line-out+Mic-in | |||
| Hardware | CPU temperature, System temperature, Onboard voltage, Watchdog | |||
| Storage | M.2 | 1xM.2_2280 Slot for NVMe(PCIe3.0 4X)/SATA SSD | ||
| M.2 | 1xM.2_2280 Slot for NVMe(PCIe3.0 1X) SSD | |||
| Expansion | M.2 | 1xM.2 2230 Slot for WiFi and Bluetooth. | ||
| Power | Standard Port | AC_Jack | ||
| Input:100-240V~, 50/60Hz,1.5A, Output: 12V/3.75A | ||||
| Dimension | Size | 120mm x 120mm x 35.5mm (L x W x H) | ||
| Temperature | Operating Temp. | -10°C to 45°C | ||
| Storage Temp. | -20°C to 60°C | |||
| Cooling | Cooling | Active | ||
| Operating System | Operating System | Win10/11 64bit, Linux 64bit | ||
| *All specifications and photos are subject to change without notice. | ||||

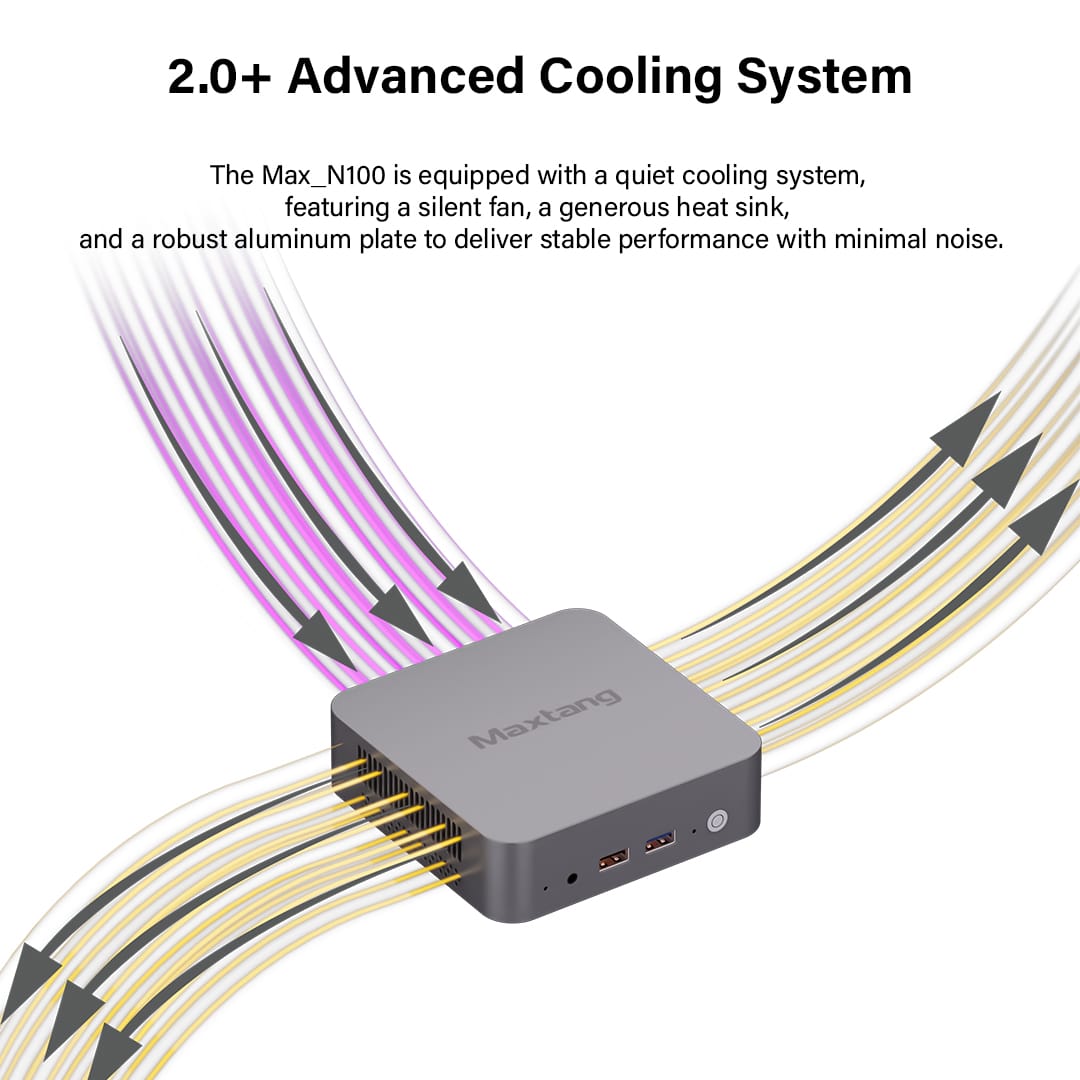

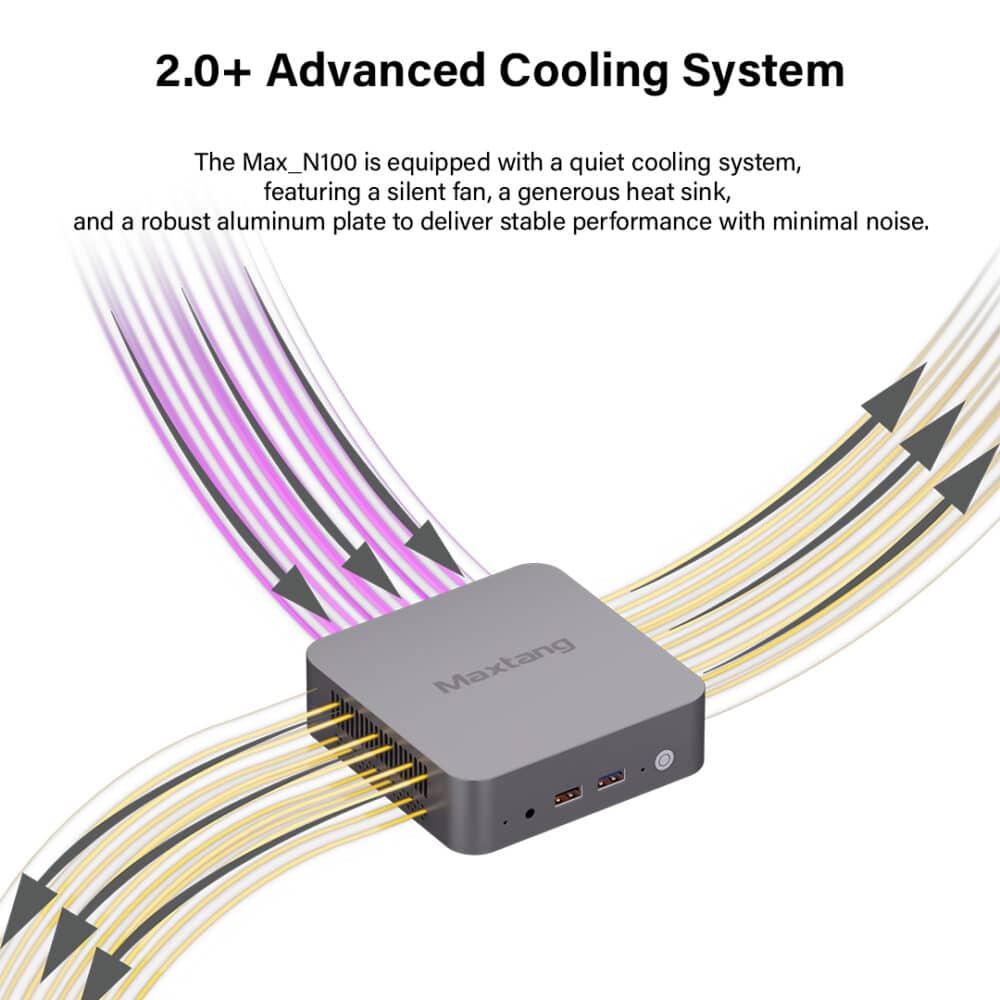

2.0+ Version Cooling System
