Next-Generation Processing Power

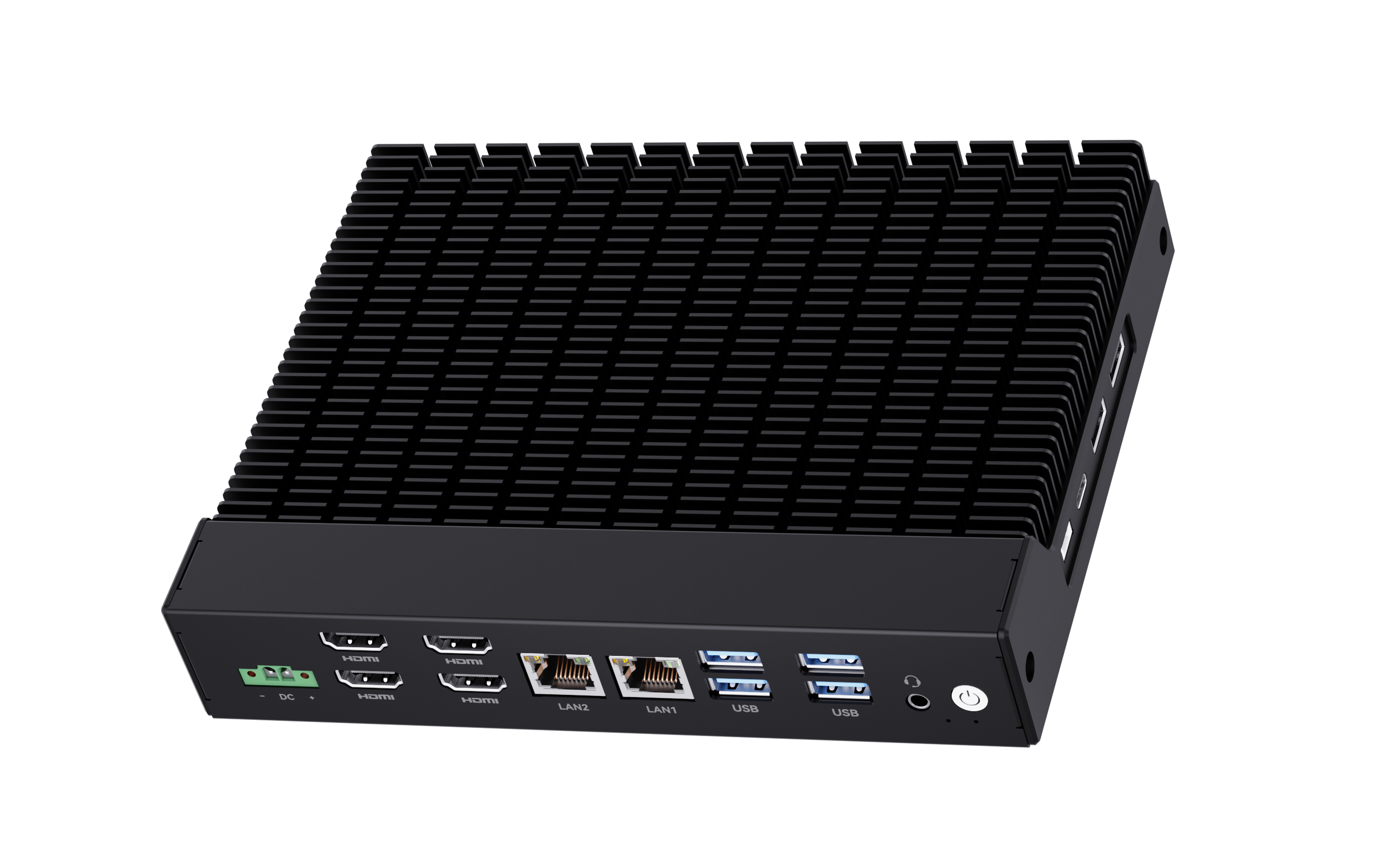

Powered by Intel® Meteor Lake and Arrow Lake-U/H processors, the SXC-ARL30 offers up to 16 cores and 22 threads with turbo frequencies up to 4.8GHz. It delivers exceptional compute power, advanced graphics, and accelerated AI performance in a compact, efficient design.
Application Scenarios
SXC-ARL30 is built for diverse application scenarios, delivering reliable performance for edge AI computing, industrial automation, digital signage, smart retail, and self-service systems. With Intel® AI Boost NPU, support for up to four displays, dual-channel DDR5 memory, dual LAN, and versatile I/O connectivity, it is a dependable solution for embedded developers, system integrators, and intelligent edge deployments requiring long-term stability and scalability.
Versatile Connectivity
Equipped with dual LAN ports supporting up to 2.5GbE and Wake-on-LAN for efficient remote management, the SXC-ARL30 also offers 4 × USB 3.2, 2 × USB 2.0, and 2 × COM ports. This rich I/O design enables seamless integration with industrial equipment, IoT devices, factory automation systems, kiosks, and digital signage, ensuring reliable connectivity for diverse embedded applications.
Specifications
System
| Processor Generation | Intel® Meteor Lake / Arrow Lake-U/H |
| Processor |
Intel® Core™ Ultra 5 (125U / 125H) Intel® Core™ Ultra 7 (155H) |
| Graphics | Intel Graphics (125U) / Intel Arc graphics (125H, 155H) |
| NPU | Intel AI Boost |
| AI Software Frameworks | OpenVINO / WindowsML / ONNX RT |
| BIOS | AMI UEFI BIOS |
Memory & Storage
| Type | Dual Channel SO-DIMM DDR5 |
| Max. Capacity | 96GB |
| M.2_N | 1x M.2 Key M 2280 Slot for NVMe SSD |
| M.2_SW | 1x M.2 Key B 2280 / 3042 Slot for SATA SSD / 4G Module |
| M.2_E | 1x M.2 Key E 2230 Slot for Wi-Fi & BT Module (CNVi, PCIe & USB) |
| Nano SIM | 1x Internal Nano SIM Slot |
Display
| Display via | 4x HDMI2.0 + USB-C (DP1.4) |
| Max. Displays | Four Screens for Multiple displays |
I/O & Network
| Controller | LAN1: 1x Intel i219 (1.0GbE) LAN2: 1x Intel i226 (2.5GbE) |
| Interface | 2x RJ45 |
| Wake on LAN | Yes |
| COM | 2x COM (RS232 by default, RS485 optional) |
| USB2.0 | 2 |
| USB3.2 | 4 |
| USB-C | 1x USB-C (Supports USB3.2 plus DP1.4) |
| Wired Control | 1x Wired Control Switch |
| TPM | Onboard, optional |
| RTC | Support RTC set up, independently for each day of the week. |
Mechanical
| Size | 190mm x 150mm x 35mm |
| N.W. | TBD |
Power & Environment
| Standard Port | 9-36V Phoenix_2PIN |
| Optional | 19V DC-IN |
| Operating Temp. | -20°C to 60°C |
| Storage Temp. | -40°C to 80°C |
| Cooling Method | Passive (U Series) / Active (H Series) |
Operating System
| OS | Windows 11 64bit, Linux 64bit |
FAQ
It supports Windows 11 64-bit and Linux 64-bit.
It includes:
1 × M.2 Key M for 2280 NVMe SSD;
1 × M.2 Key B for 2280 SATA SSD / 4G module (3042);
1 × M.2 Key E for 2230 Wi-Fi and BT module (supports CNVi, PCIe, USB);
1 × Nano SIM slot
Yes. The system supports up to four independent displays via four HDMI 2.0 ports. An additional display can also be connected through the USB-C port with DisplayPort 1.4 support, depending on the configuration.
It is suitable for AI edge computing, industrial automation, multi-display digital signage, retail kiosks, and embedded control systems.
